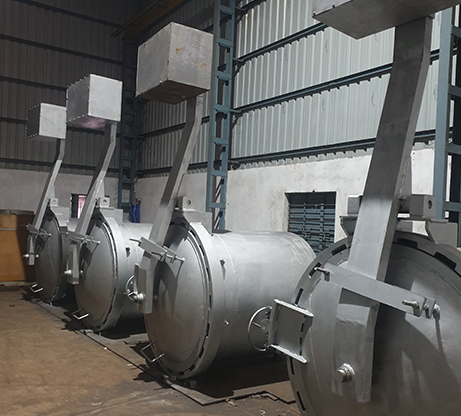

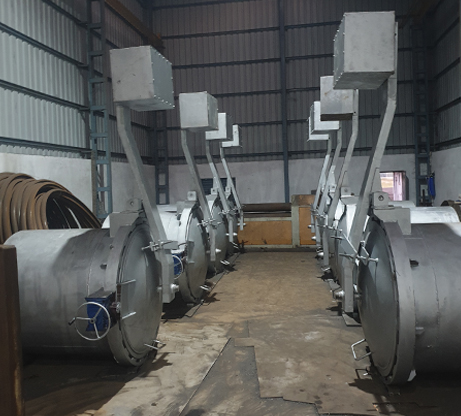

AAC Autoclave Doors

Karadani Engineering Pvt Ltd. Provide Autoclave Door with Various types of designs and Self Locking System

  • Design Code: ASME SEC VIII DIV 1
  • Range of Diameter : 500 mm - 5000 mm
  • Material : Stainless Steel, Mild Steel, BQ Plate
Request A Quote
Product Specification
Design : Cookring type
Thickness : 10 mm - 50 mm
Opening of door : Cantilever Load, Manual Opening, Hydraulic Opening , Gearbox for Door Locking
Pressure capacity : 0.1 bar - 100 bar.
Connections : As per the client's requirement.
Accessories : Pressure Gauge, Safety Valve, Drain valve and all other accessories.

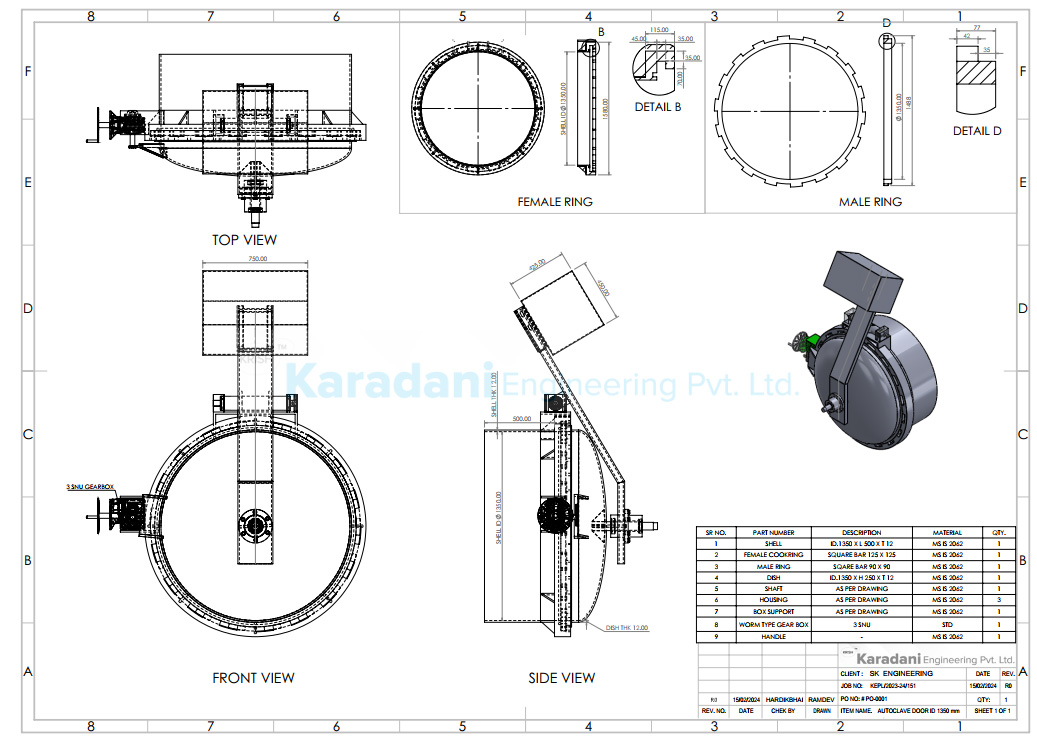

Documents : Tank will provide with Hydro-test Report, Drawing, Material Test Report, Internal Inspection Report, 1 Year Warranty.
Application : AAC BLOCK, AAC AUTOCLAVE
